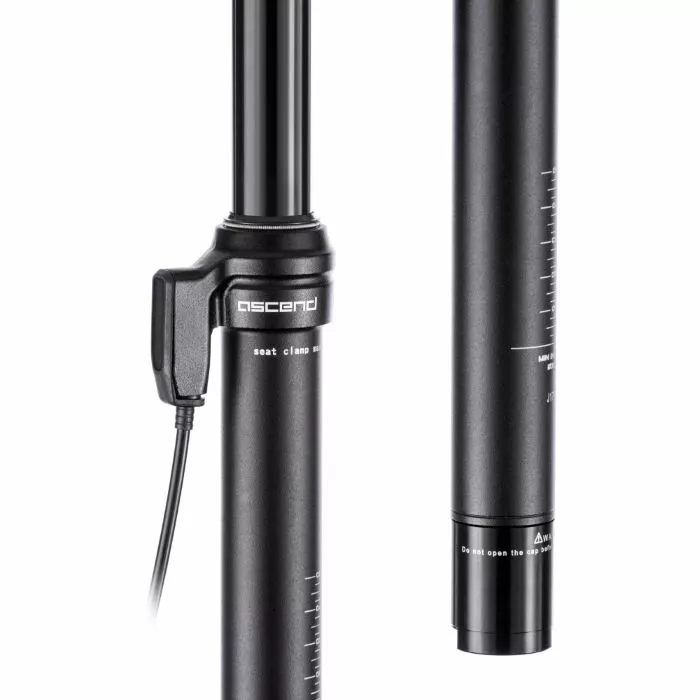

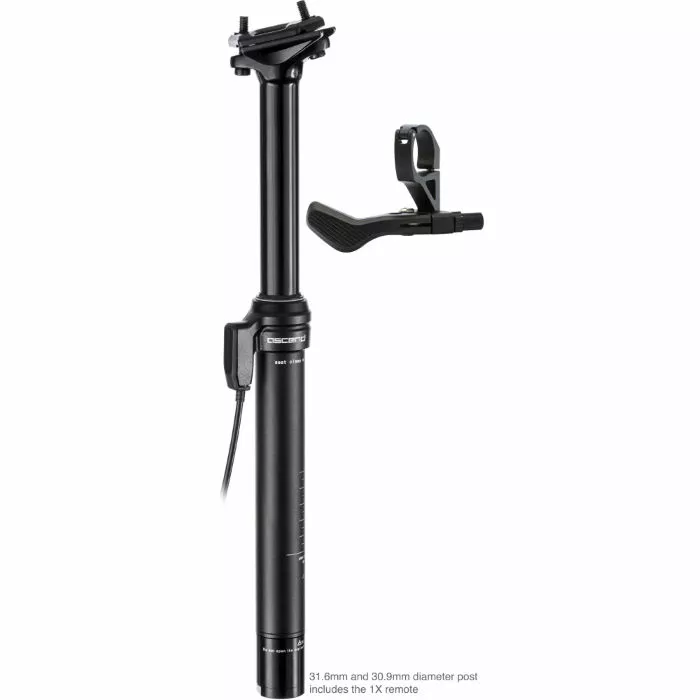

Brand-X Ascend II XL Dropper Seatpost (170mm)

The Ascend II XL externally routed dropper seatpost offers 170mm of travel. Ideal for taller riders or for those who like the added height adjustment, the Ascend II XL comes in new for 2019 and is available in both 30.9 and 31.6 seatpost diameters.

Building on the success of the original Ascend, Brand- X now offer a long drop externally routed option with the Ascend II XL.

The post carries over the reliability and core qualities of the original. Infinitely smooth adjustment and incredible value for money make the Ascend II the go to dropper post for those riders that require external routing.

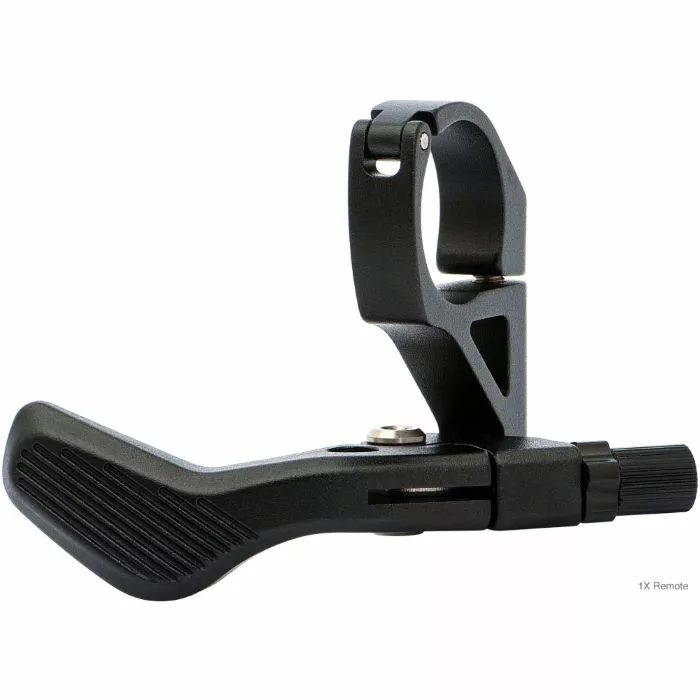

The post comes with an ergonomic 1X lever. The cable is actuated from the mid cap ensuring zero cable movement. For those wishing to run a 2X set up, a right hand mount ‘paddle’ lever is available here: https://www.wiggle.co.uk/brand-x-ascend-lever-kit

The Ascend Dropper seatpost set new standards for reliability and performance at a fantastic price point.

Minimum Insertion Length Information

Size                               Minimum Insertion Length        Minimum Insertion Length

                                                                                            including the actuator (mm)

31.6mm x 489mm 170mm          100                                     138

30.9mm x 489mm 170mm          100                                     138



Service Guide Information

Click here to view the Brand-X Ascend II 150, 170 External Route Dropper Post Service Guide.

Topfunktioner:

• Material: AL6061-T6; Finish: Sand Blasted and Hard Anodised Black
• Bar mounted remote lever and cable operated external routing
• Linkage mechanism eliminates any outer cable pull
• Zero Offset one piece head/ upper shaft with micro adjust clamping mechanism
• Diameter: 30.9mm, 31.6mm, Length: 489mm (shaft is 264mm), Travel: 170mm
• Cable Length: 1.5m
• Finish: Sand Blasted and Hard Anodised Black
• 2 Year Warranty
• Rider Weight: Min: 50-55kg; Max: 120kg
• Weight: 670g (31.6mm without cable/lever)
